FEATURES

1.   ROM:

     ● RISC 2T core

     ● 2K x 16 bits MTP

     ● 10 years data retention at least

2.   RAM: 256 x 8 bits

3.   STACK: 8 Levels

4.   System Clock type selections

      ● Fast clock from Internal RC (FIRC, 16MHz)

      ● Slow clock from Internal RC (SIRC, 80 KHz @4V)

5.   System Clock Prescaler

     ● System Clock can be divided by 1/2/4/8 option

6.   Power Saving Operation Mode

     ● FAST Mode: CPU running at Fast-clock

     ● SLOW Mode: CPU running at Slow-clock

     ● IDLE Mode: Fast-clock and CPU stop; Slow-clock keep running.

     ● STOP Mode: All clocks and CPU stop.

7.   Two Independent Timers

     ● Timer0

       - 8-bit timer divided by 1~256 pre-scale option / auto-reload / counter / interrupt / stop function

     ● Timer1

       - 8-bit timer divided by 1~256 pre-scale option / auto-reload / interrupt / stop function

8.   Interrupt

      ● Three External Interrupt pins

         - 1 pin is falling edge wake-up triggered & interrupts

         - 2 pins are rising or falling edge wake-up triggered & interrupt

     ● Timer0 / Timer1 / Wake-up Timer Interrupt

     ● PWM Interrupt

     ● LVD interrupt

9.   Wake.up Timer (WKT)

     ● Clocked by built-in RC oscillator with 4 adjustable interrupt times

        - 12 ms / 25 ms / 50 ms / 100 ms @ 4V

10. Watchdog Timer (WDT)

     ● Clocked by built-in RC oscillator with 4 adjustable reset times

       - 100 ms / 200 ms / 800 ms / 1600 ms @ 4V

     ● Watchdog timer can be disabled / enabled in STOP mode

11. Five 16-bit PWMs (shared periods)

     ● PWM0, PWM1, PWM2, PWM4, PWM5

       - 16 bits, individual duty-adjustable, shared period-adjustable controlled PWM

       - PWM clock source: System clock (Fsys), FIRC (16 MHz) or FIRC*2 (32MHz)

12. Reset Sources

     ● Power on Reset

     ● Watchdog Timer Reset

     ● Low Voltage Reset

     ● External Pin Reset

13. Low Voltage Reset (LVR) and Low Voltage Detection Flag (LVD)

     ● 16-Level Low Voltage Reset: 2.05V ~ 4. 15V

     ● 15-Level Low Voltage Detection Flag: 2.20V ~ 4. 15V

14.Operating Voltage

     ● Fsys= 16 MHz, 1.9V~5.5V @LVR disable @25°C. Suggest LVR 2.05V @-40°C~ 105°C

     Note: Power up VCC must exceed POR and user selected LVR level, refer to the “Electrical Characteristics Graphs” to avoid entering ROM dead zone.

15. Operating Temperature Range : .40°C~105°C

16. Table Read Instruction: 16.bit ROM data lookup table

17. Integrated 16.bit Cyclic Redundancy Check (CRC) function

18. Instruction set: 39 Instructions

19. I/O ports:

     ● Maximum 6 programmable I/O pins

       - Open-Drain Output

       - CMOS Push-Pull Output

       - Schmitt Trigger Input with pull-up resistor option

       - All I/O with High-Sink

       - 1/2 bias output

20. Programming connectivity support 5.wire (ICP) or 8.wire program

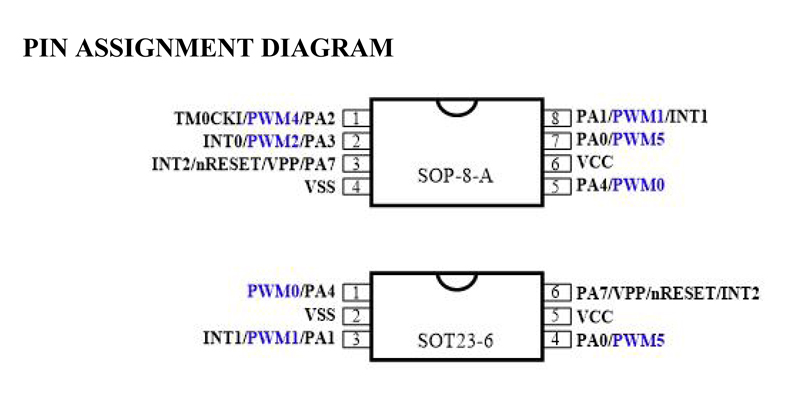

21. Package Types:

     ● 8-pin SOP (150 mil)

     ● 6-pin SOT23-6
